Adding a note to a direction

Notes are currently accessed via an icon on the directions list, which opens a modal dialog.

But the modal has several problems:

  • it’s cramped and requires scrolling because the form is taller than the modal’s container
  • it has two toggle switches, “flag as urgent note” and “flag as urgent task” that behave confusingly - for example, selecting both disables “flag as urgent note”
  • the previous notes section is blank and takes up a lot of space when there are no notes
  • the “Add note” button sticks to the bottom of the modal but sticky buttons have problems

So we redesigned the flow to use dedicated pages instead.

How it works

Clicking “Add note” on the direction details page takes the user to a page to enter a note. An inset shows the direction description for context.

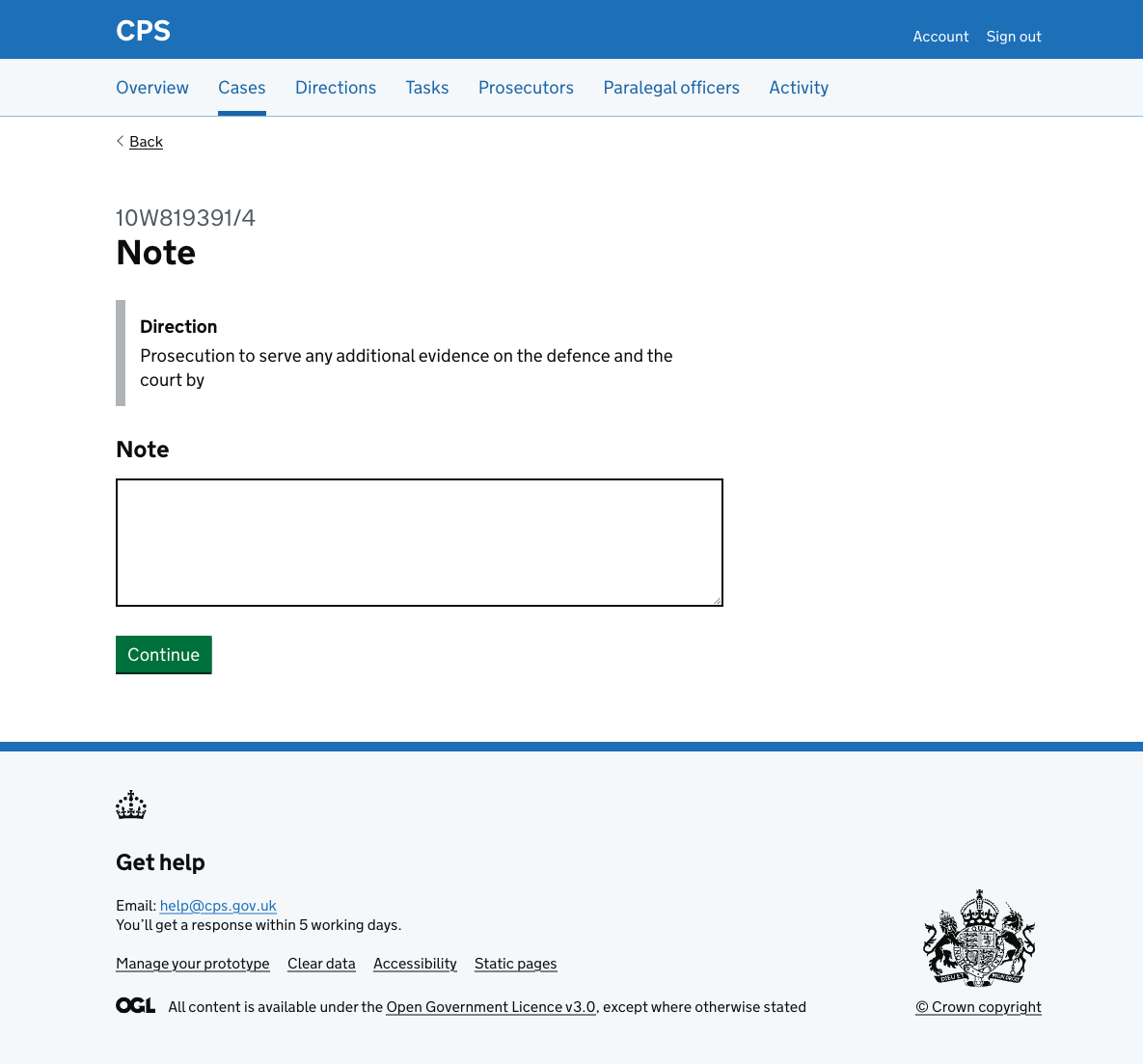

The note page showing "Note" as the heading, an inset showing the direction description, a Note textarea, and a Continue button.

After entering a note, the user is taken to the check answers page:

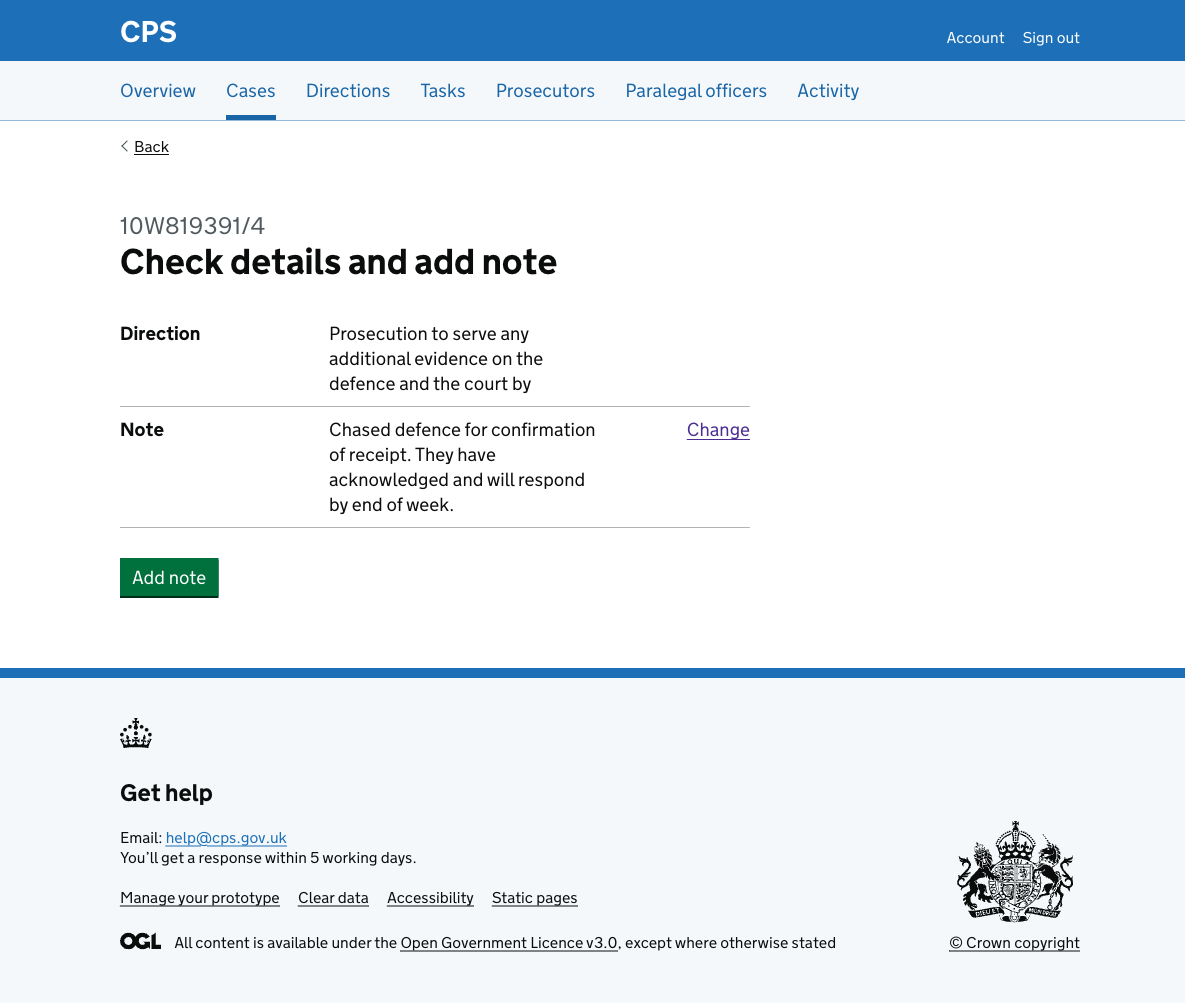

The check answers page showing "Check details and add note" as the heading, with direction and note rows, and an "Add note" button.

The note has a change link to go back and change it.

After clicking “Add note”, the user is taken back to the direction details page.

A success banner says “Note added” and the new note appears at the top of the notes list.

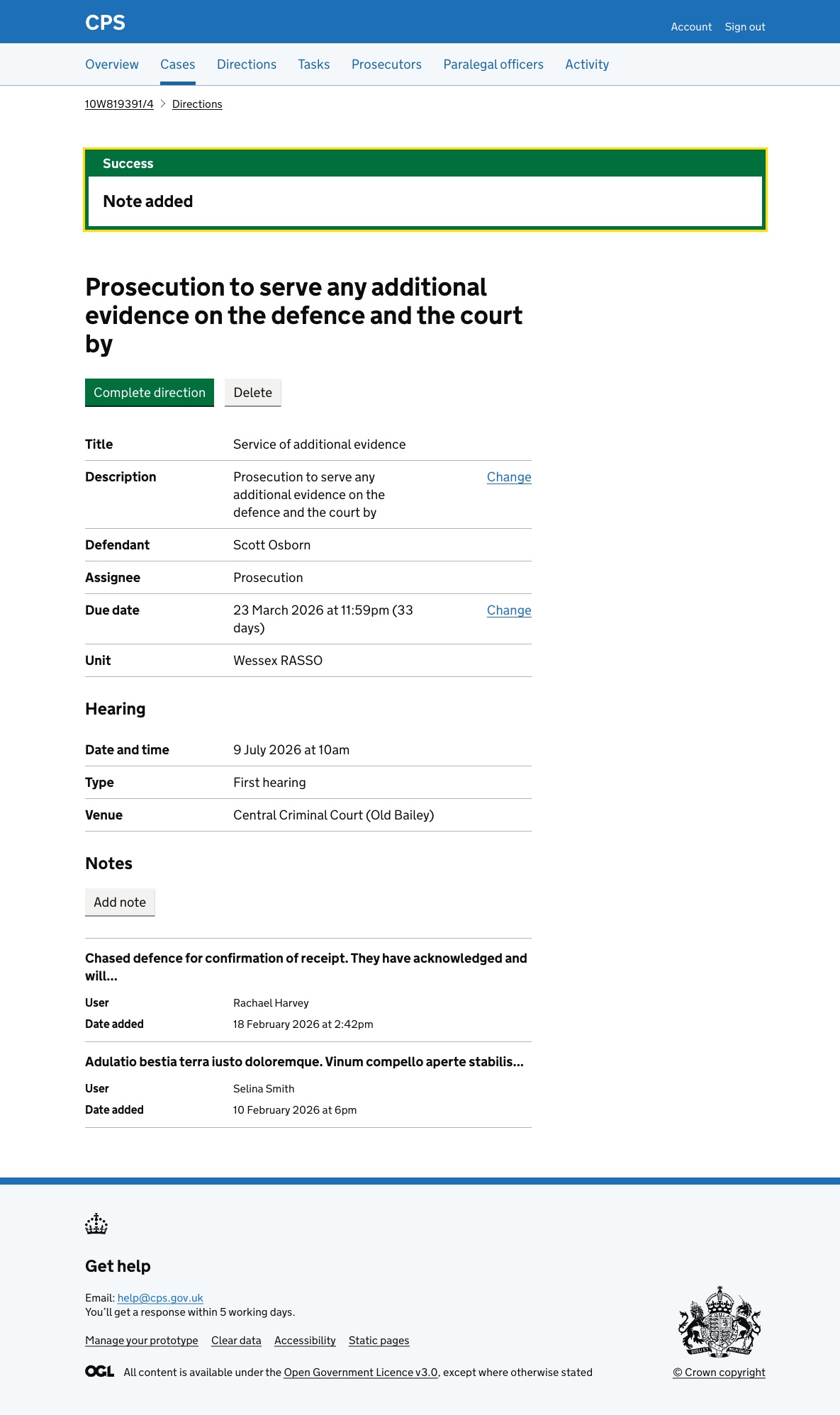

The direction details page with a green success banner saying "Note added" and the new note appearing at the top of the notes section.

Activity log

The action is recorded in the activity log as “Direction note added”, showing the direction description and the note text.

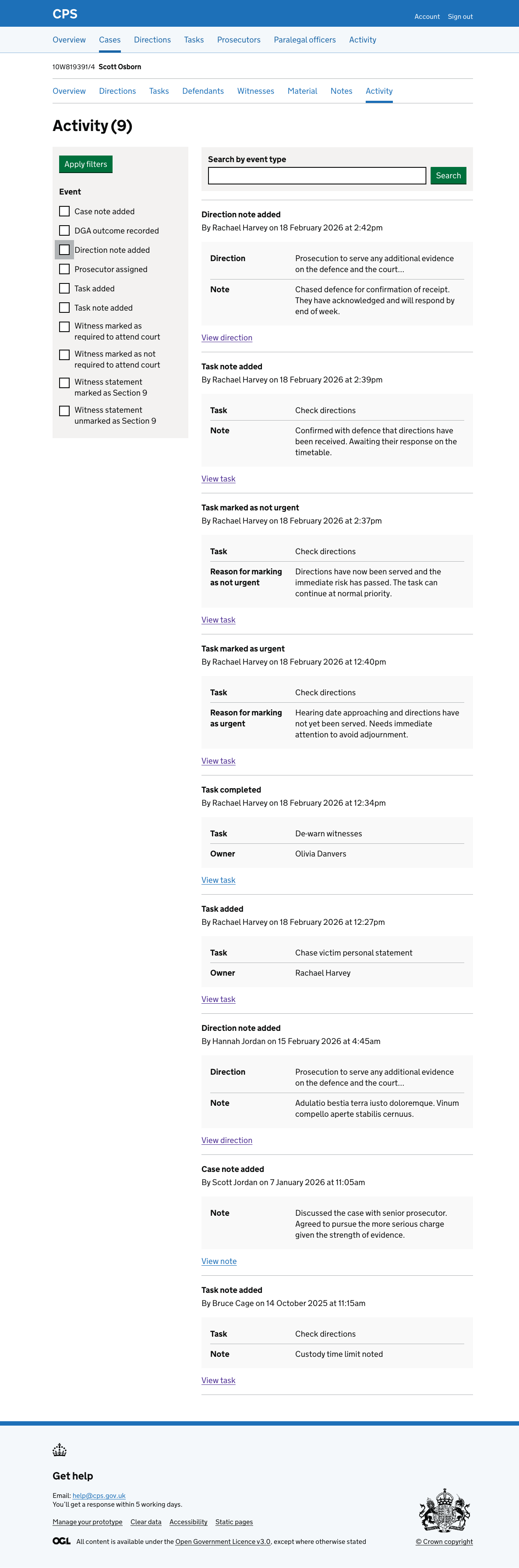

The case activity log showing a "Direction note added" entry by Rachael Harvey, with the direction description and note text.

Error messages

Note

  • No note entered: Enter a note
  • Note is too long: Note must be 5,000 characters or fewer
